Q35Y-16 Hydraulic Ironworker – Multi-Function Punching and Shearing Machine
- Model:
- Q35Y-16 Ironworker
- Shipping Port:
- Shanghai
- Brand:
- RAXMEK
- Payment:
- T/T, L/C, D/P, Western Union
- Product Origin:
- China
- Lead Time:
- 40-60 days after deposit payment

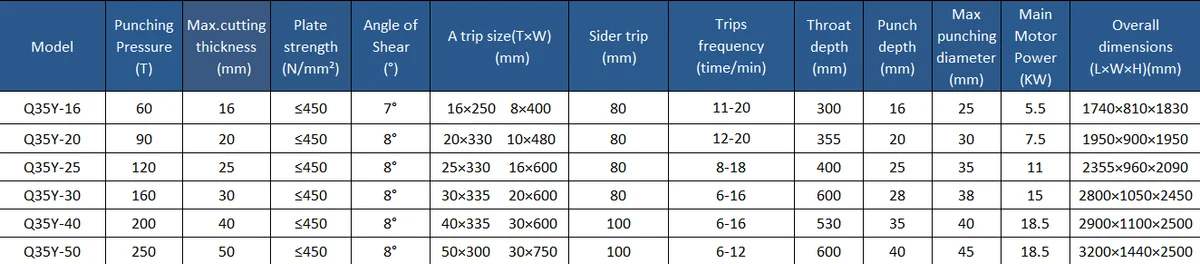

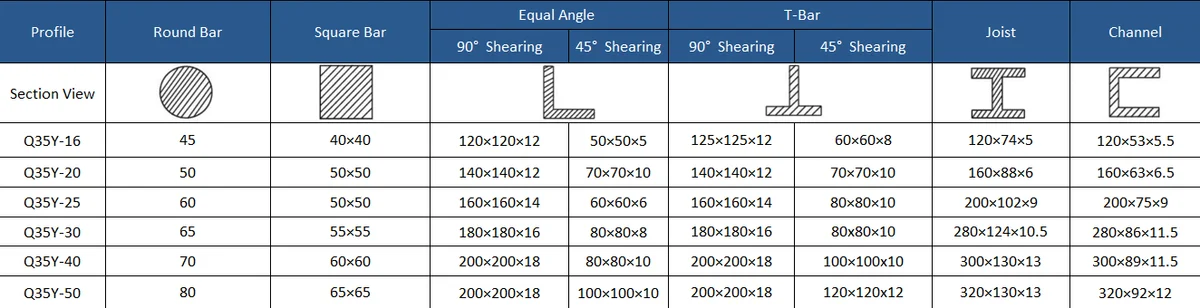

Technical Specifications
Q35Y-16 Hydraulic Ironworker
The machine is the multi-function combined punching and shearing machine with hydraulic transmission. It can shear, punch, and die-cut flat steel, square steel, round steel, angle steel, channel steel, and I-beam steel, equipped with shear block feeding devices.

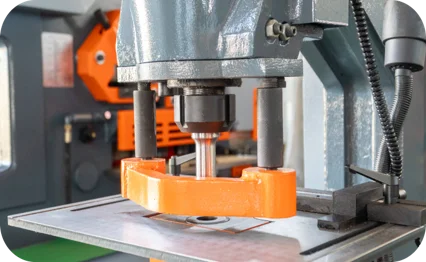

Precision Punching System
A complete set of punches and dies can meet various punching needs.
The punching template is equipped with a large viewing window and features a convenient screw-on design, combined with a quick-change fixing nut system, making punching tool changes both quick and easy.

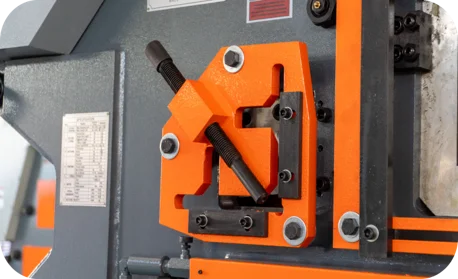

Angle Steel Shearing Section
The machine's angle steel shearing section can be equipped with a hydraulic presser foot, offering powerful functionality.
Hydraulically driven, it precisely shears various metals. It is easy to operate, flexible in adjustment, and highly durable. Multiple safety protections ensure safe operation.

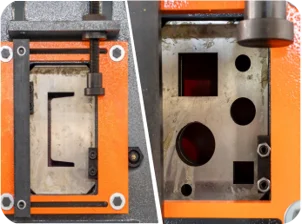

Adjustable Shearing & Clamping Device
The adjustable clamping device facilitates the shearing of various specifications of channel steel, square bars, round bars, T-beams, H-beams, and other structural steel.
Optional blades of different specifications for channel steel, square bars, round bars, T-beams, H-beams, etc.

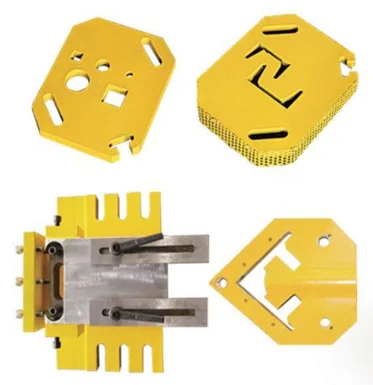

Premium Quality CNC Machined Toolings
Toolings uses high-strength alloy steel, precision CNC machined to a tolerance of ±0.02MM, ensuring smooth, burr-free cuts.
It is suitable for steel plates from 0.5-20MM thick and various profiles.
H-steel, channel steel need to be customized
