Advanced Metal Bending Solutions
As a premier CNC press brake manufacturer, RAXMEK integrates state-of-the-art hydraulic valves, robust frames, and responsive control systems to maximize your workshop's productivity. Our press brake machines are built for long-term precision and consistent bending angles across stainless steel, carbon steel, and non-ferrous metal profiles.
Our Bending Machine Lineup

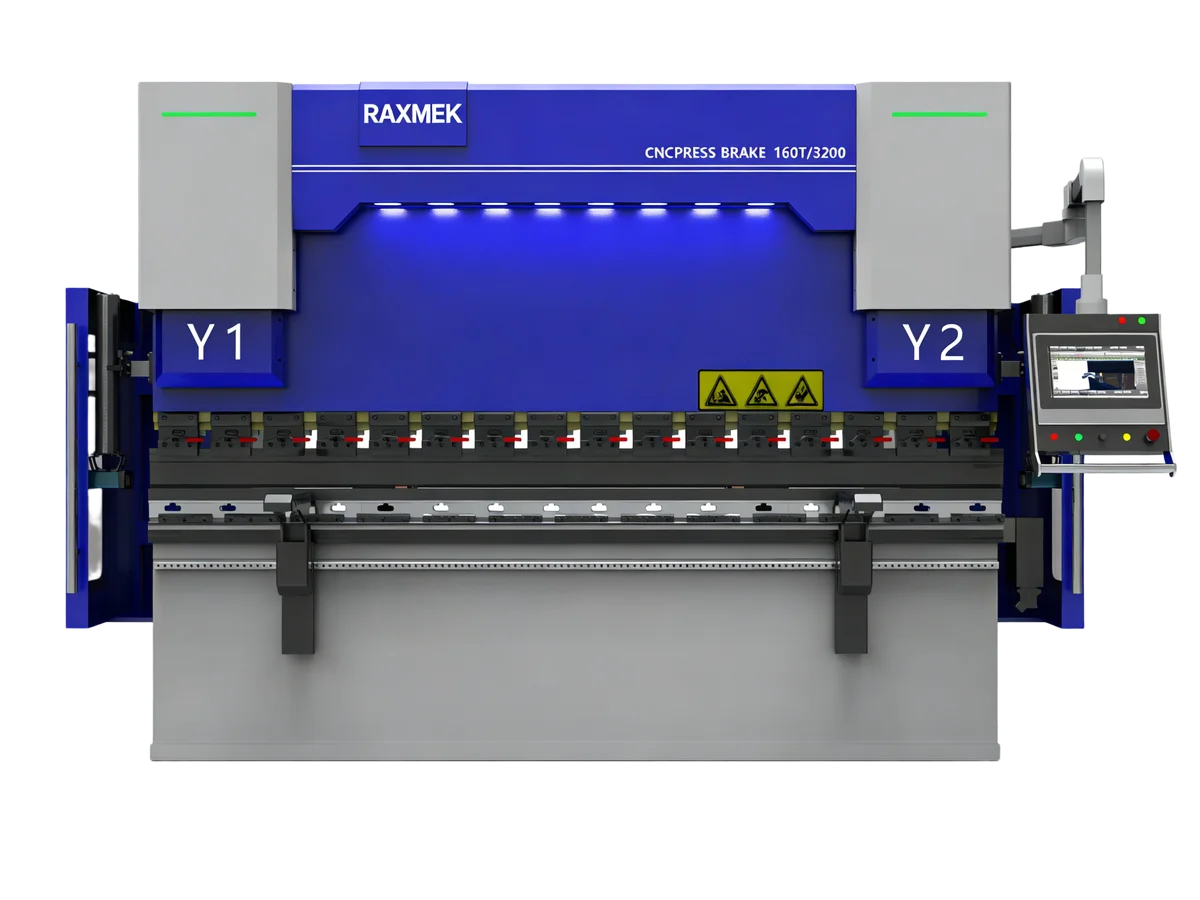

WPD Series Servo Direct Drive CNC Press Brake
- Bending Capacity: 160 Ton, Bending Length: 3200 mm
- Equipped with advanced Delem DA53T / DA58T 4+1 axis CNC control system
- Advanced closed-loop servo pump control system for low energy and low noise operation
- Automatic crowning compensation to ensure uniform bending angles over the entire length
- Highly accurate backgauge positioning with rapid Y1, Y2 cylinder synchronization
- Ideal for premium electrical enclosure and sheet metal cabinet fabrication

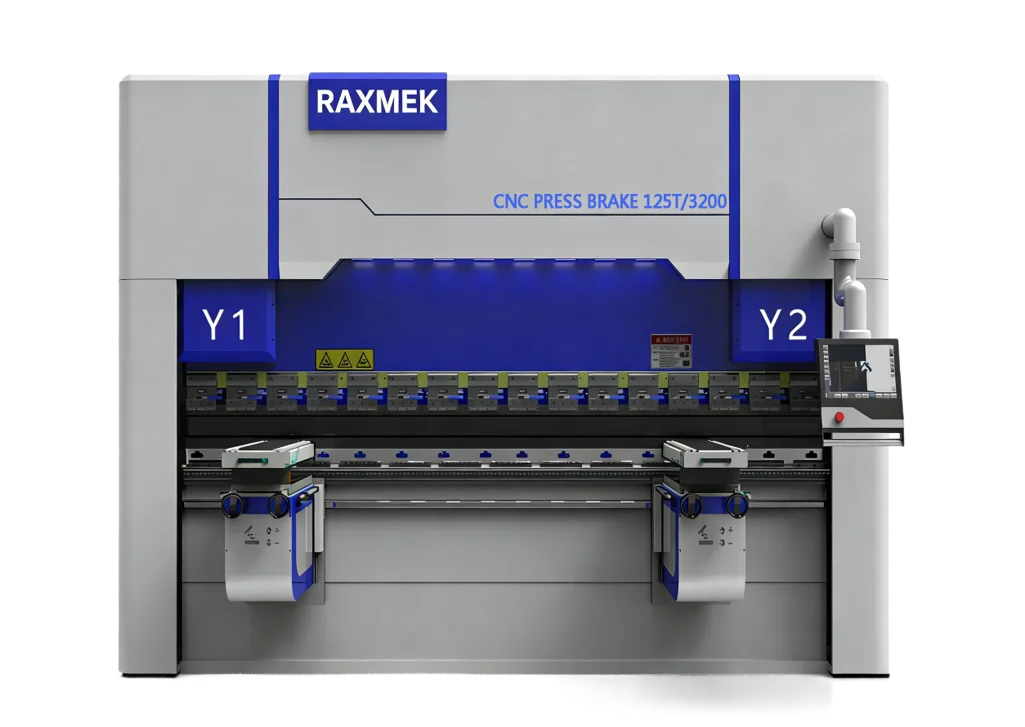

WPD-125T3200 DA66S/DA69S CNC Press Brake
- Bending Capacity: 125 Ton, Bending Length: 3200 mm
- Equipped with premium Delem DA66S / DA69S 2D/3D graphical touch screen controllers
- Closed-loop electro-hydraulic servo synchronization (Y1, Y2 axes)
- Supports 6+1 or 8+1 axis configurations for complex sheet metal geometries
- High energy-saving SVP servo pump system reducing power consumption by up to 60%
- Compatible with DSP laser safety guards and mechanical crowning systems

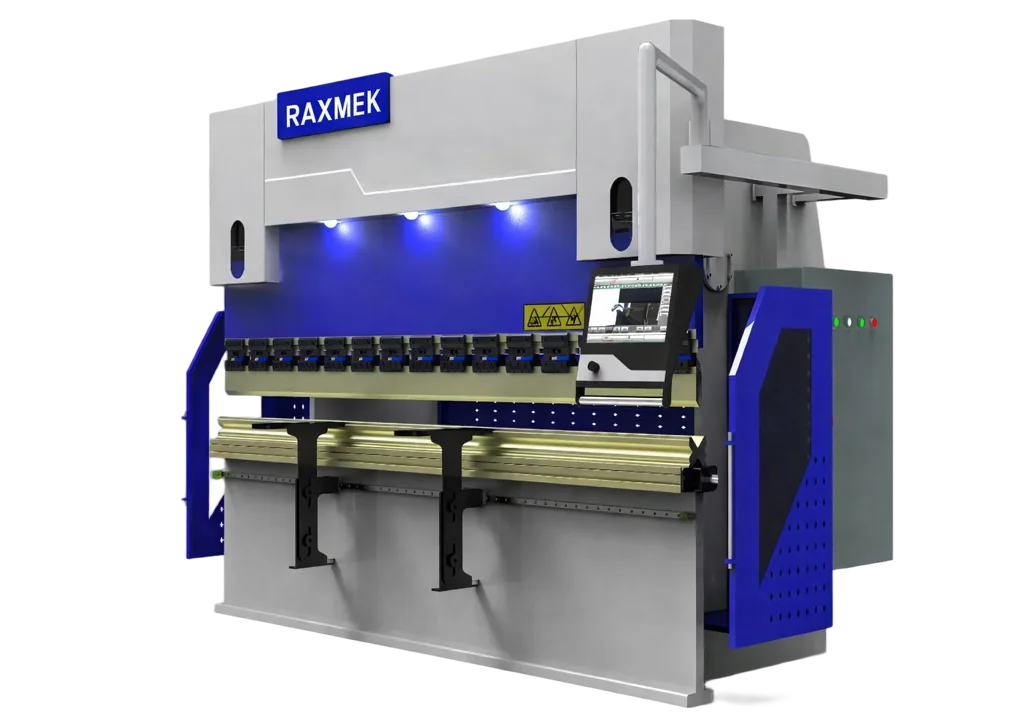

WC67K-250T3200 NC Press Brake
- Bending Capacity: 250 Ton, Bending Length: 3200 mm
- Torsion bar mechanical synchronization with high-rigidity structural frame
- Equipped with ESA630 CNC controller for budget-friendly multi-axis operations
- BOSCH-REXROTH integrated hydraulic valve block for leak-free operations

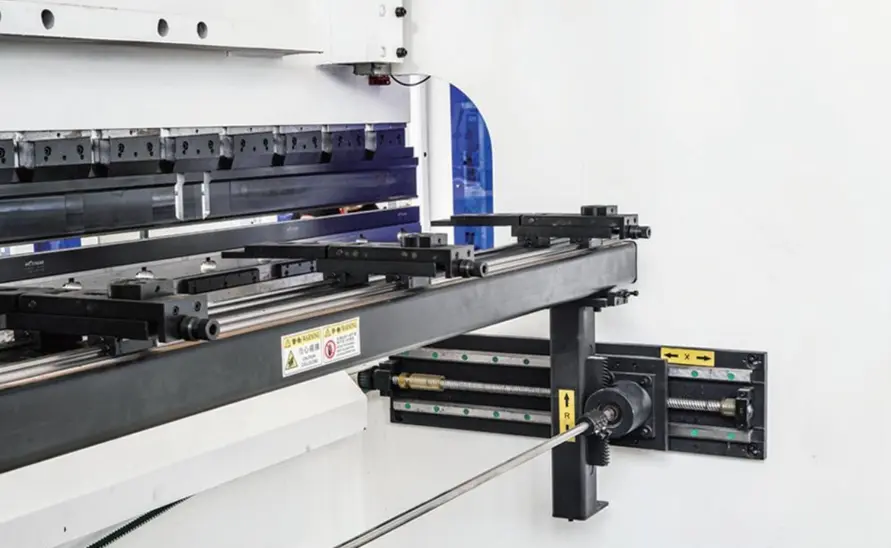

- Precision ball screw and linear guide rails for fast backgauge positioning
- Excellent cost-effective solution for thick plate and structural profile bending
Technical Advantages of RAXMEK Press Brakes

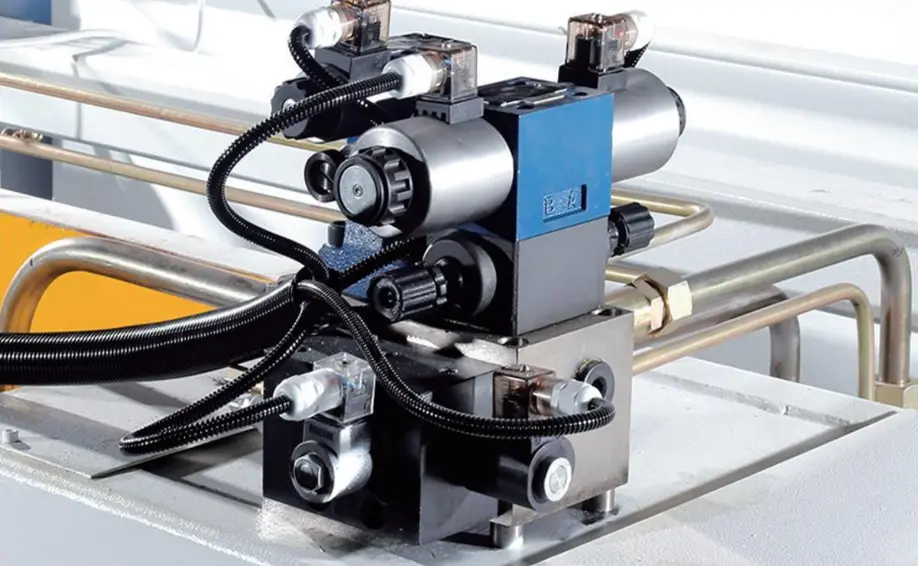

✔German Hydraulics
Integrated German hydraulic valves provide reliable, high-frequency, and leak-free bending pressure control.
✔Precision Closed-Loop Servo
Equipped with Inovance servo drives to deliver consistent ram speed and high-accuracy positioning.
✔Quenched & Hardened Tooling
Press brake punches and multi-V dies undergo quenching and tempering for long-lasting wear resistance.
✔Global Controller Options
Fully compatible with leading CNC systems, including Delem, ESA, and Cybelec interfaces.

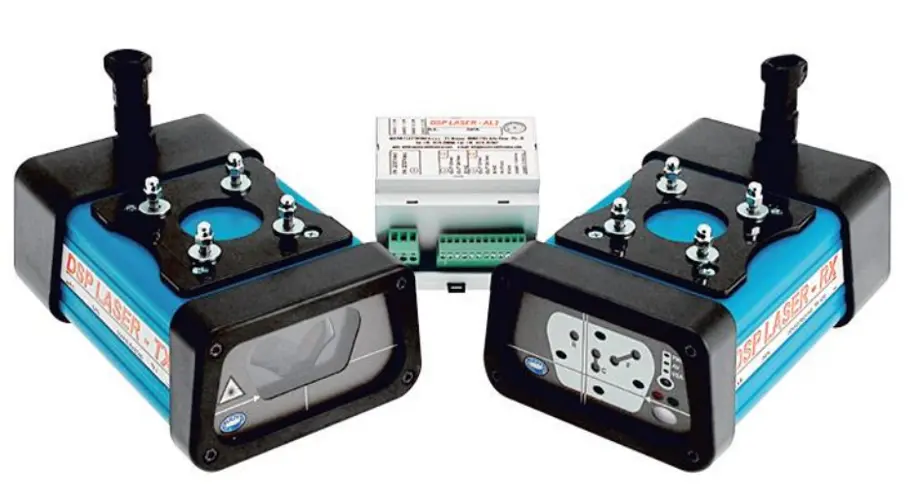

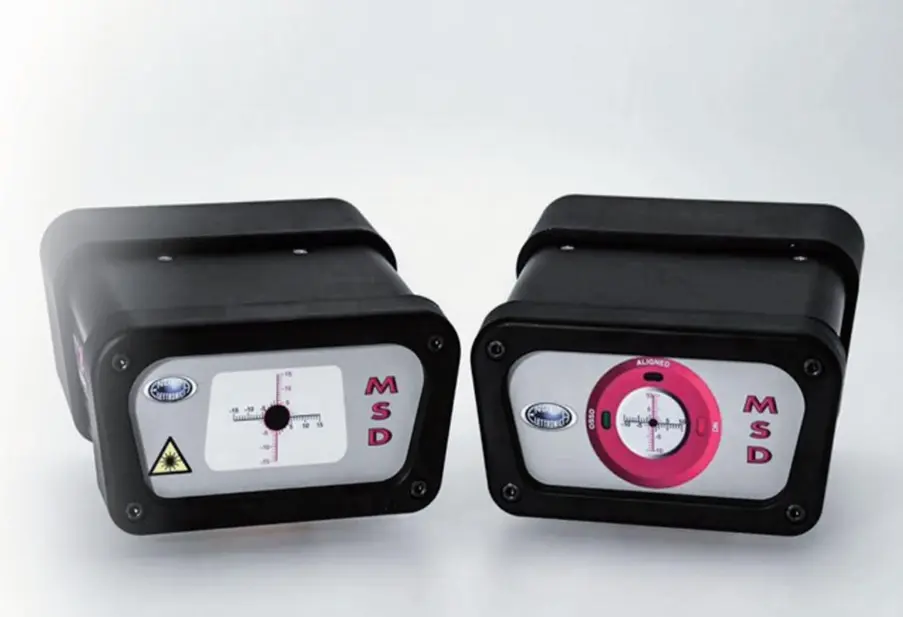

✔Laser Safety Barriers
Optional Italian DSP laser safety guards protect operators while keeping cycle speeds optimal.
✔SVP Servo Pump Control
Energy-efficient servo motor pump control limits throttling, lowers oil temperature, and saves power.
CNC Press Brake Controller Systems
Discover the main control systems available for our high-precision press brakes:
Delem CNC Series (Netherlands)
Industry-standard touch controllers designed for advanced electro-hydraulic press brakes.

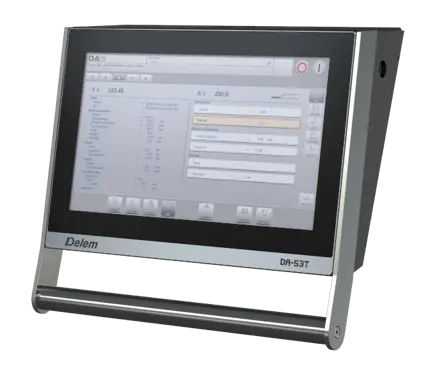

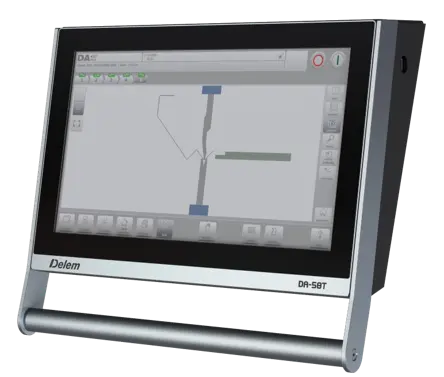

- DA-53T & DA-58T: Cost-effective touch control panels with offline programming and 2D bending simulation.

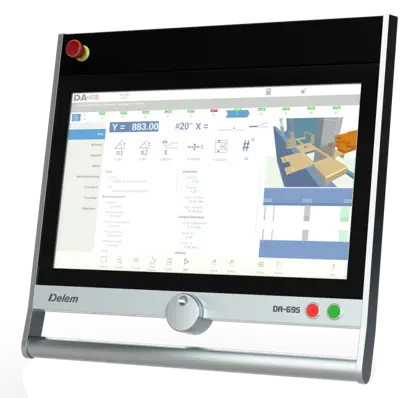

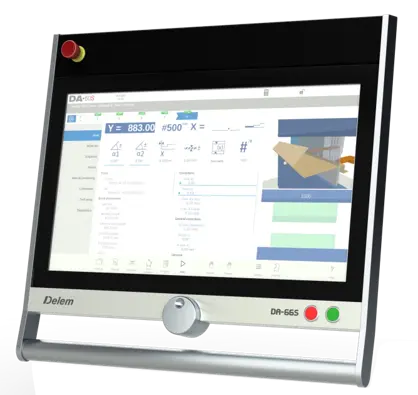

- DA-66T & DA-69T: Professional multi-axis controllers featuring 2D/3D graphical simulation and network connectivity.
ESA CNC Series (Italy)
High-performance graphical interfaces designed for complex multi-axis bending sequences.
- ESA 630 & 640: Intuitive 2D touch program generators with high system scalability.
- Coordinates up to 8+1 axes (Y1, Y2, backgauges X/R/Z, and crowning controls).
Cybelec CNC Series (Switzerland)
Reliable and compact European controllers built for essential bending automation.
- Cybelec CT8 & CT12: Highly cost-efficient touch control units.
- Supports standard 4-axis configuration (Y1, Y2, X, R) along with automatic mechanical crowning.
Sheet Metal Press Brake Buying Guide

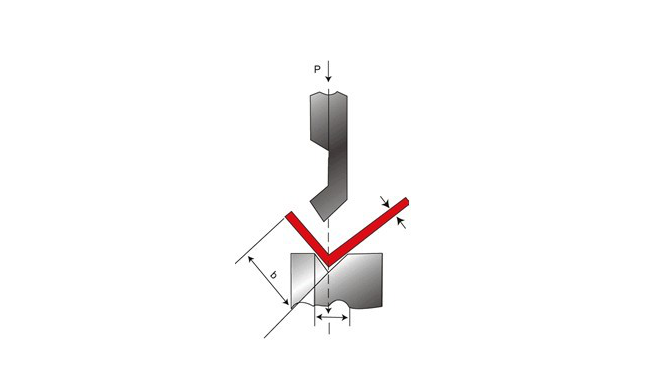

Bending Force Calculation Formula
To select the right press brake model, determine the required tonnage using this formula:
P = 650S²L / V
- P – Bending pressure (kN)
- S – Material thickness (mm)
- L – Sheet metal length (mm)
- V – Lower die opening width (mm)
- Formula assumes mild steel with tensile strength σb = 450 N/mm²
Payment and Delivery Terms
We offer standard terms: 30% TT deposit to initiate production, and the remaining 70% TT balance before shipment. Delivery lead time for standard press brake models is 35 to 45 days.
Target Industries and Applications
- Electrical Cabinets & Enclosures: Precise bending of computer chassis, control panels, and server racks.
- HVAC & Ductwork: Efficient forming of ventilation components, ducts, and air handling unit casings.
- Automotive & Transportation: High-repeatability bending of chassis parts, structural brackets, and brackets.
- Shipbuilding & Infrastructure: Heavy-duty plate bending for hull assemblies and large structural shapes.
- Decorative Architecture: Clean bending of window profiles, door frames, and stainless steel facade designs.
CNC Press Brake Considerations
For complex shapes, multi-step bends, and high-precision tolerances, a CNC electro-hydraulic proportional press brake is the ideal choice. These machines offer automatic crowning, independent Y1/Y2 cylinder control, and full graphical 2D/3D programming to optimize cycle times.
