Advanced Pipe Bending Solutions
RAXMEK's line of CNC and NC pipe bending machines integrates state-of-the-art hydraulic actuators, robust structural frames, and intelligent servo-driven axes. Engineered to handle complex multi-dimensional spatial bends with high speed, our bending systems are the ideal choice for stainless steel, copper, carbon steel, and aluminum tubing profiles.
Our Pipe Bending Machinery
CNC50 High-Performance Pipe Bending Machine
- Bending Capacity: Round tubes Φ18×1.6 to Φ219×16 mm, Square tubes up to □200×14 mm
- Advanced 4-axis servo control coordinating precise bending, feeding, rotation, and mold shifting
- High-rigidity frame and German hydraulic system for stable, high-pressure operation
- Interactive 3D touch interface with automatic collision detection and 3D program simulation
- Highly efficient cooling system ensuring consistent performance during continuous industrial cycles
- Perfect for automotive exhausts, aerospace hydraulic lines, and HVAC copper manifolds
NC89 Intelligent Pipe Bending Machine
- Bending Capacity: Round tubes Φ38×1.2 to Φ270×14 mm, Square tubes up to □200×14 mm
- Intelligent NC programmable microcomputer controller with simple value-input programming
- Hydraulically driven clamping and bending mechanism for high torque and stable forming force
- Durable alloy rollers and hardened transmission components for prolonged industrial service life
- Cost-effective solution ideal for 2D bends, metal furniture, and shopping fixtures
- Quick-change mold design and low noise operation to maximize shop productivity
Why Choose RAXMEK?
With years of manufacturing experience, RAXMEK is committed to engineering advanced metal forming solutions.
Innovative R&D
RAXMEK invests heavily in technological innovation, dedicating over 10% of annual revenue to our advanced R&D center.
Certified Quality
Our manufacturing facility operates under strict ISO 9001 quality management, with all machines fully CE certified.
24/7 Expert Support
Our engineering and customer service teams provide round-the-clock technical assistance and virtual operational training.
Decades of Expertise
Since our establishment, RAXMEK has specialized in sheet metal and tube forming machinery, delivering thousands of systems worldwide.
Optimized Lead Times
Standard pipe bender models ship within 20 days, and customized configurations are built and delivered within 45 days.
Batch Cost Advantages
By leveraging standardized batch assembly processes, we offer high-fidelity industrial machinery at highly competitive price points.
Pipe Bending Machine Buying Guide
Why Choose RAXMEK Tube Pipe Bending Machine?
Versatile Materials & Shapes
- •Handles stainless steel, copper, carbon steel, brass, and aluminum profiles.
- •Supports both round tubes and square profiles.
- •Achieves a wide bending angle range of 0-185° with custom-designed dies.
Heavy-Duty Capacity
- •Processes outer diameters up to 270 mm.
- •Forms wall thicknesses up to 20 mm.
- •Achieves bending radii up to 1000 mm for heavy-duty industrial pipe pipelines.
Automation Savings
- •Programmable NC and CNC controls automate material alignment and cycle feeding.
- •Drastically reduces scrap rates and operator dependency.
- •Guarantees high repeatability across batch production.
Advanced Precision Features
- •Up to 13 axes of servo coordination for complex spatial contours.
- •Supports push-bending for spiral and large-radius designs.
- •Built-in 3D simulation protects against collision and mechanical interference.
Applications of Tube Bending Machines
Tube bending machines (pipe bending machines) are widely used in many fields closely related to daily life and industrial fabrication. Here are the key sectors:
Automotive Manufacturing
- •Exhaust manifolds
- •structural seat frames
- •air conditioner lines
- •and motorcycle crash bars.
Furniture & Fixtures
- •Metal chair frames
- •dining table supports
- •shopping mall display racks
- •and handrails.

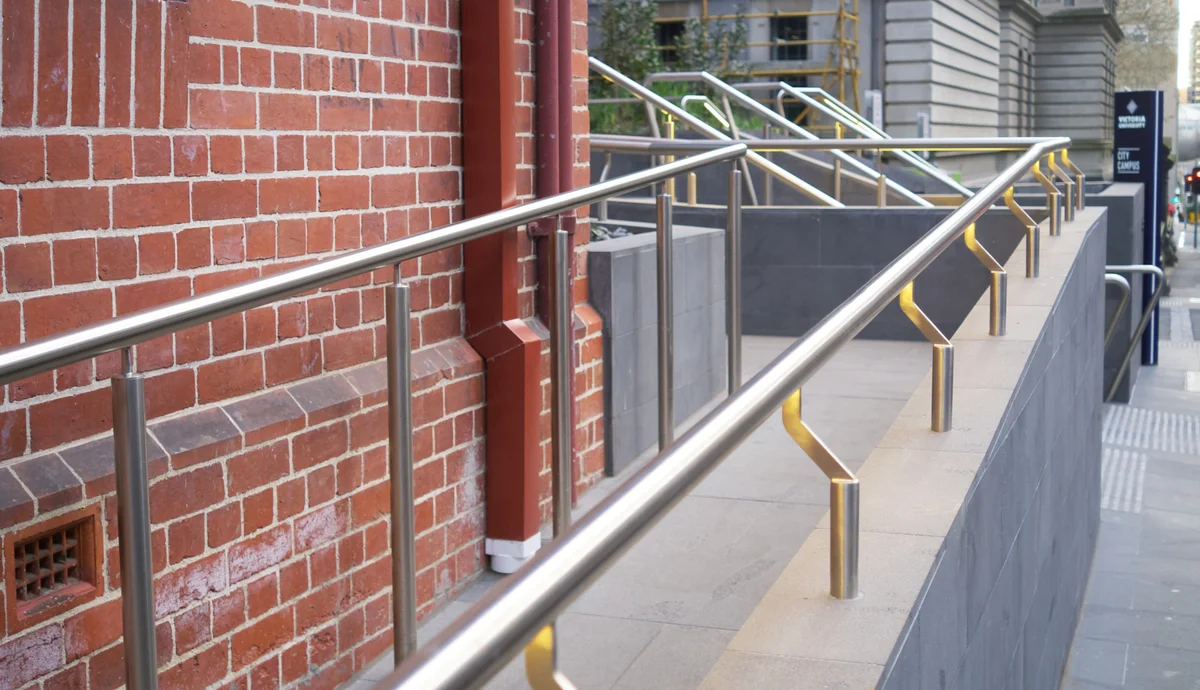

Construction & Decoration
- •Drainage pipelines
- •heating pipes
- •architectural steel frames
- •and stainless balcony railings.

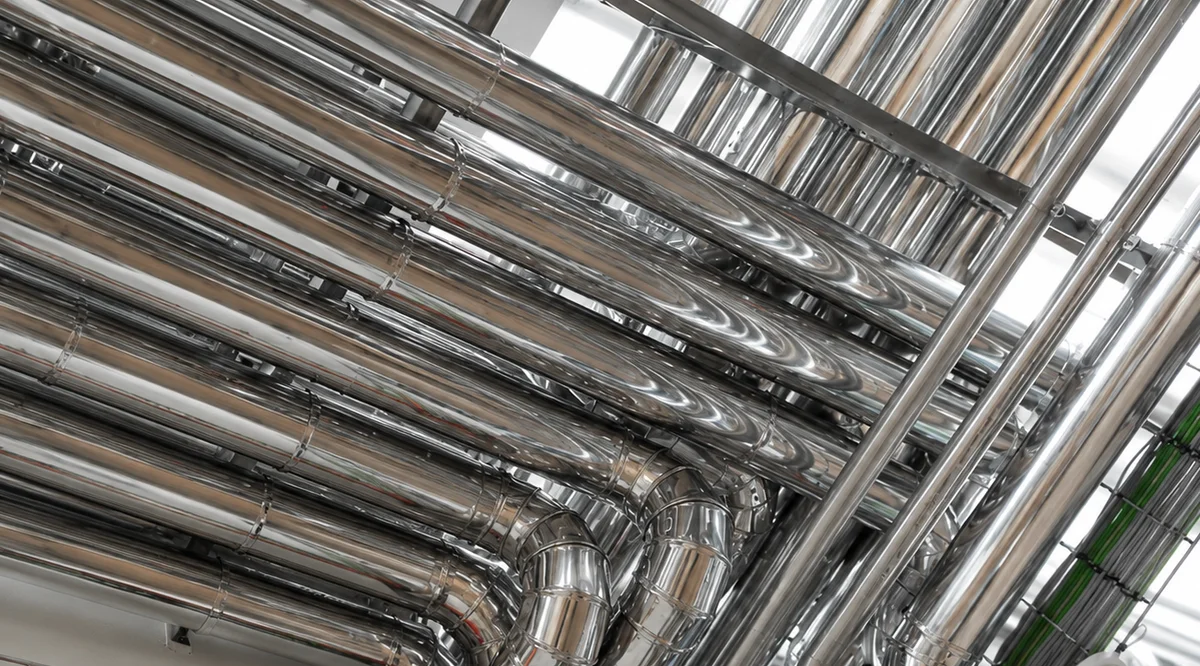

HVAC & Refrigeration
- •Air conditioner tube connections
- •industrial cooling coils
- •condenser sets
- •and evaporator lines.
Fitness & Sports Equipment
- •Bicycle frames and handlebars
- •treadmill frames
- •fitness station structural tubing
- •and hand grips.

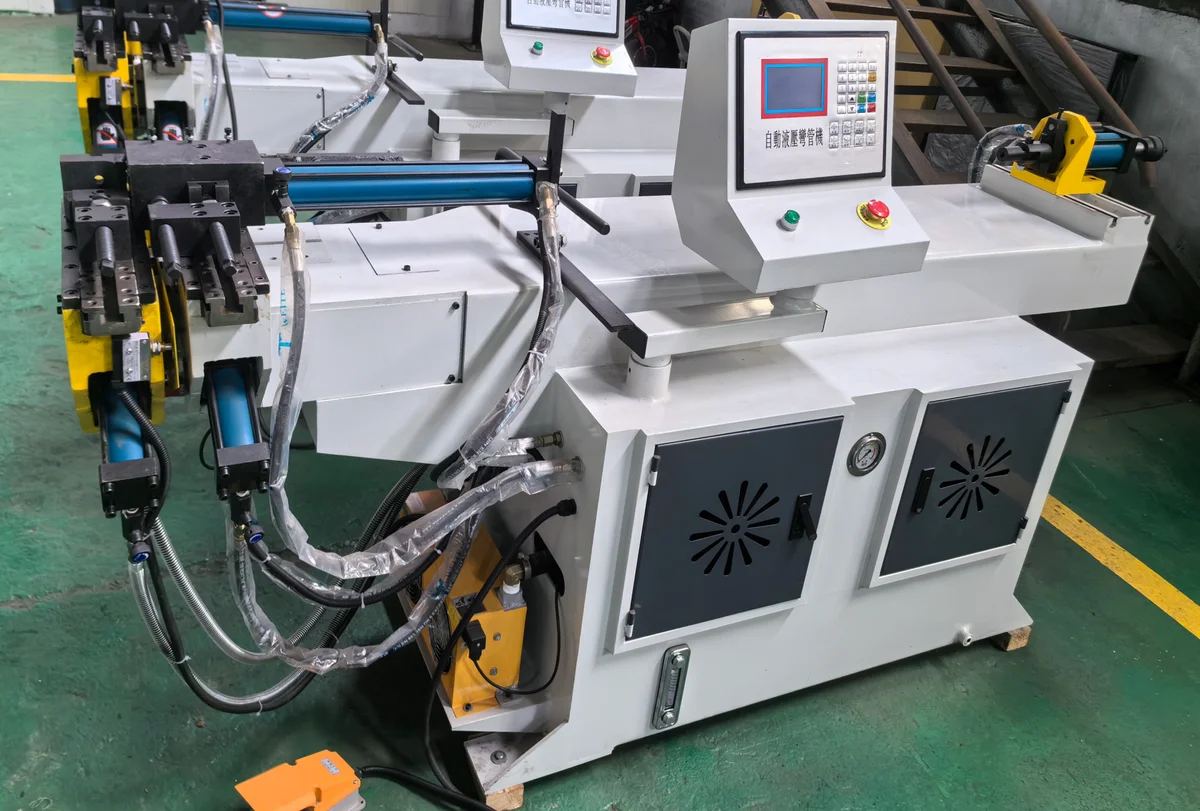

How NC/CNC Pipe Bending Machine Works
The operation of modern NC and CNC pipe bending machines relies on digital control systems to execute precise hydraulic and mechanical movements.
Initially, the pipe is securely clamped to the forming die. Operators set critical variables—including bending angles, linear feed lengths, and spatial rotation angles—via the touchscreen interface.
The central control system processes the programmed sequence. Servo valves and proportional actuators then coordinate clamping, pressure die support, and mandrel retraction.
When the cycle begins, the machine bends the pipe around the rotating die, producing accurate 2D or 3D geometries with high speed and zero manual errors.
How to Choose the Best NC/CNC Pipe Bender?
Verify Processing Parameters & Tube Shapes
First, map the physical specs of your target workpieces. Round tubes require checking outer diameter, wall thickness, bending radius, and length. Square or rectangular tubes require defining section dimensions and radius parameters.
Square Tubes:
- • Bending radius
- • Cross-section (L x W)
- • Wall thickness
- • Pipe length & material
Round Tubes:
- • Bending radius
- • Tube diameter
- • Wall thickness
- • Pipe length & material
Quality of Tooling & Custom Dies
The dies and mandrels directly determine the bending quality. Hardened alloy dies that match your pipe specifications prevent wrinkles, structural collapse, and unwanted ovality defects.
Evaluate CNC Automation Features
If you process multi-radius shapes or require maximum throughput, look for features like multi-stack tooling, automatic rotation, and programmable mandrel retraction.
Check Component Quality & Hydraulics
Sturdy physical construction, precise linear guides, and premium hydraulic valves (like Bosch Rexroth or HAWE) ensure consistent bending angles and low failure rates over years of continuous operation.
Processed Workpieces Display
Swipe or scroll horizontally to view sample pipe fittings and components bent by RAXMEK machines.
Bent pipe workpiece
Stainless bent pipe
Coiled tube workpiece

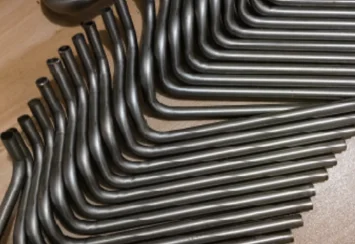

Multi-bend pipe frame

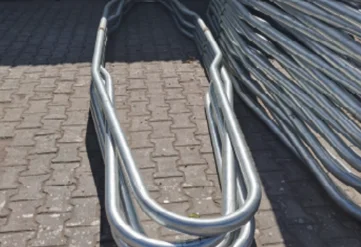

Automotive exhaust pipe

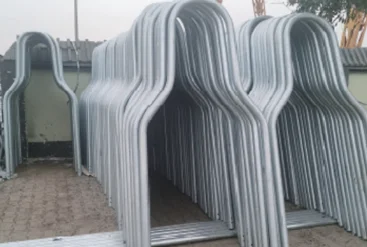

Air conditioning copper tube

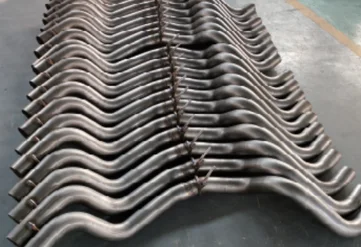

Hydraulic high-pressure pipe

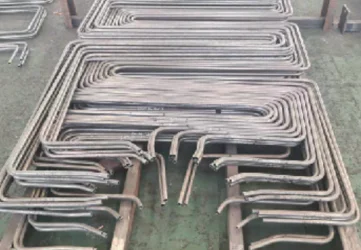

Furniture frame segment
Frequently Asked Questions
Are you a manufacturer or a trading company?
RAXMEK is a premier manufacturer specializing in sheet metal and tube forming machinery. Our engineers have over 18 years of experience in product design, assembly, and quality control.
Where is the RAXMEK manufacturing plant located?
Our factory is located in Suzhou City, Jiangsu Province, China. It is highly convenient to visit, being close to Shanghai airports and high-speed railway links.
What is the standard lead time for delivery?
Standard pipe bending machine models are typically built and delivered within 15 to 20 days. Customized setups requiring specialized tooling require up to 35 to 45 days.
What payment terms and trade methods do you support?
We support standard terms: 30% TT deposit to initiate production, and the remaining 70% TT balance before shipment. We accept T/T, L/C, Western Union, and online payments.
What warranty do you provide for RAXMEK machinery?
All RAXMEK machines are backed by a comprehensive 3-year warranty, covering parts and technical consultation.
Do you accept OEM and custom requests?
Yes, we fully customize configurations, including target voltages, structural sizing, color schemes, controller brands, and custom tooling sets.
What is the minimum order quantity (MOQ)?
The MOQ is 1 set. We welcome both individual workshops and global distribution partners.
How does RAXMEK ensure strict quality control?
We run high-precision CNC machining centers, boring machines, and grinding systems to manufacture core components. Every machine undergoes strict test runs and quality validation before dispatch.
How is after-sales technical support handled?
For minor issues, we provide virtual step-by-step video support. In case of component failures under warranty, replacement parts are shipped via express carrier free of charge.
Do you provide training services for operators?
Yes, we offer detailed video tutorials and remote training. If required, we can send service engineers directly to your facility for on-site commissioning and training.
